Repulsor Field Planner or: Obstacle Avoidance via Vector Field

Introduction

RepulsorFieldPlanner.java is a file used in the codebase of a robot that calculates what direction to go in order to reach a goal on the field, given the fact that there are obstacles in the way. A lot of the math may seem unapproachable or overwhelming at first, but so long as you're willing to put some effort into reading this document and learning some things, I'm sure you'll see it's not too bad.

This document is designed to help a student, whether rookie or veteran, mathematically inclined or averse, understand what RepulsorFieldPlanner.java is meant to solve, how it solves that problem, and how to use it. Please be inclined to ask questions to mentors or other students should you have any questions or confusions. The team is here to help you, and so is this document.

What is `RepulsorFieldPlanner.java`?

Originally designed during the 2025 competition season, the file arose from the wider FRC community, not specifically from Team Tators. In particular, the original derivation (which can be found here) used in our codebase comes from Children of the Corn, team #167. This document, however, is unique to our team. In 2025, there was a large hexagonal obstacle in the middle of each alliance's side of the field that the robot had to place on, and it was soon realized that automating the entire placement process (i.e. the robot takes control of driving the moment a gamepiece was picked) would be a lot faster than the standard manual driving approach employed in years past. However, the easy way of driving in a straight line from point A to point B wouldn't quite cut it, since, as mentioned previously, there was a large hexagonal obstacle in the way. Thus, obstacle avoidance was born.

How Does `RepulsorFieldPlanner.java` Work?

But how does one avoid obstacles? It's a somewhat difficult problem to think about, really. In the past, the typical approach to driving to a point, not considering obstacles, was to just use a simple PID control loop on your robot's position to drive it to a specific point. The new idea amongst the community was to define something called a vector field to represent the field.

Intro to Vector Fields

If you're somebody who has not taken calculus yet, then that link leading to a calculus textbook may seem scary. If you want to continue learning and improving, you need to eviscerate that thought and eject it far from your soul. I've been there, and I can tell you the thought of "this math is too complicated" is not true. A vector field is literally just a bunch of arrows that point somewhere. Some arrows are longer than others, and so they're stronger than the other arrows, and whatever thing is there will experience a greater force in that direction. Why this is considered high level math is beyond me.

Vector fields are used widely in mathematics and physics, such as when modelling a gravitational or magnetic field, but they are conceptually easy to understand. If you've taken AP Calculus, you might be familiar with a slope field, which is close to what a vector field is. Slope fields define the direction for a function to travel, while a vector field defines the direction and strength with which to follow, as vectors have direction and magnitude.

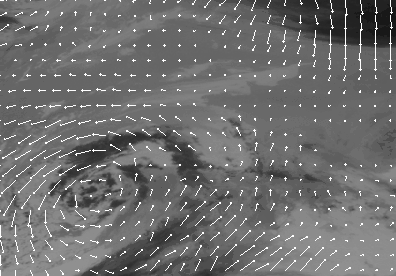

For example, look at the following gif, and glance upon the many arrows drawn in the hurricane. Now imagine you're something in that hurricane. Pick a point and try following its path with your finger. Pay attention to the speed and direction of your movement, and see how it matches up with the length and direction of the arrows near your finger. This is the same way the robot follows the vector fields defined in RepulsorFieldPlanner.java.

A hurricane with a changing vector field drawn on top of it

Keep in mind that, although vector fields are often visualized with grids of arrows whose positions are fixed, a vector field is typically a continuous function, and the grid of arrows is simply an easy way to visualize a function \(\vec{F}(x, y)\), where \(\vec{F}\) is a vector with direction and magnitude in a two dimensional plane. The visual grid of arrows is not a literal definition of a vector field, but more just a helpful way to visualize many outputs of a continuous function.

Visualization

To visualize the vector field you're creating, there's a function in RepulsorFieldPlanner.java called getArrows(), which returns an array of Pose2ds. When logged properly (this logging should only happen in simulation, as the computation is somewhat expensive), the array can be visualized in AdvantageScope's odometry or 3D field tab. For reasons explained below, there are three different types of vector fields one can draw: goal, obstacle, and sum. The VectorField enum can be passed into getArrows to determine which field to visualize.

Another point of note is that, due to technical limitations in AdvantageScope, the strength of vectors cannot be visualized. Only Pose2ds have translational and rotational data that can be visualized, but a Pose2d is meant to depict a point, not a vector, and thus has no way to configure the strength of the vector depicted by one.

Final Algorithm

There are really two vector fields at play here. There is a vector field that points away from obstacles, and there is a vector field that points toward the goal. They use an inverse square (\(\vec{F} \propto \frac{1}{x^2}\)) and proportional strength (\(\vec{F} \propto x\)) relationship, respectively. Thus, the closer to an obstacle the robot is, the harder it will drive away, and the closer the robot is to the goal, the less it will drive towards it.

The final vector is computed by simply adding the resultant vector from each field together, like so:

Compute the vector from field obstacle vector field
Compute the vector from goal position vector field
Add these two vectors together

The final step produces a vector that both drives the robot away from obstacles and drives toward a goal. Step 1 is represented by the function getObstacleForce(), step 2 by getGoalForce(), and step 3 by getForce() in the code. It really is that simple.

How Do I Use `RepulsorFieldPlanner.java`?

A few things have to happen before one can avoid obstacles. First, create a repulsor where you plan on using one (typically just within the drive subsystem).

RepulsorFieldPlanner repulsor = new RepulsorFieldPlanner();

Next, when you want to declare where to travel to, you must tell the repulsor where that is.

// `goal` here is a Pose2d that is assumed to be already known
repulsor.setGoal(goal.getTranslation());

Finally, the repulsor has to be periodically sampled, since the robot is constantly moving throughout the vector field, changing the vector calculated. sampleField is a function that will return a RepulsorSample, which is a custom data type that does nothing more than hold three values: intermediateGoal, vx, and vy. vx and vy can be used as feedforward values for the robot velocity, and intermediateGoal can be used in a feedback loop to compute a more accurate following of the vector field. If you do not know what "feedforward" or "feedback" are, please refer to this useful page on control theory in the WPILib documentation (the provided link points to block diagrams, as that's where feedforward (or "open-loop") and feedback ("closed-loop") are diagrammed, but the entire page is worth a read)

/* this entire snippet should be called periodically */

Pose2d pose = getPose();

RepulsorSample sample = repulsor.sampleField(
    pose.getTranslation(), // translational position of the robot
    3.5, // max speed of the robot in meters per second when following the vector field
    0.8 // distance of the robot in meters from the goal before linearly interpolating a slowdown to 0 m/s
);

ChassisSpeeds feedforward = new ChassisSpeeds(sample.vx(), sample.vy(), 0);

ChassisSpeeds feedback = new ChassisSpeeds(
    transController.calculate(
        pose.getTranslation().getX(),
        sample.intermediateGoal().getX()),
    transController.calculate(
        pose.getTranslation().getY(),
        sample.intermediateGoal().getY()),
    rotController.calculate(
        pose.getTranslation().getRotation().getRadians(),
        goal.getRotation().getRadians())
);

ChassisSpeeds output = feedforward.plus(feedback);

And then, if you actually use the output object, you will have obstacle avoidance. It wasn't that hard, right?

Adapting From Year to Year

RepulsorFieldPlanner.java has many different obstacle types defined in it, but you may need to formulate more depending on the field. For example, TeardropObstacle is a pretty unique shape (sort of like "c>", like a raindrop), but forces the robot to move to the sides of a circular obstacle should the goal be on the opposite end of the obstacle from the robot. This was used to model the reef in the 2025 onseason. The reef was a big hexagon, so you may have to get creative with how you model obstacles to get a satisfactory result.

It's also important that the obstacles be modified from year to year. Don't assume that copying the file verbatim from last year will work, since the robot will be avoiding last year's obstacles. It's likely there will be a file out there somewhere in the community (such as from 3173, 6995, or 167), so don't feel as though you have to be a genius at modelling in order to get a working solution. All obstacles should be defined as static objects near the instantiation of last year's obstacles, and the strength of obstacles may need to be tuned.
