Architecture Spec
Introduction
The architecture spec describes the overall intended design of the 2025 off-season robot (aquatator). This includes designs for the various algorithms and how various components should interact. This document should be readable without having any understanding of code, and should not be dependent on any particular code implementation.
How to Read the Diagrams
The following diagrams can be understood through these example diagrams:

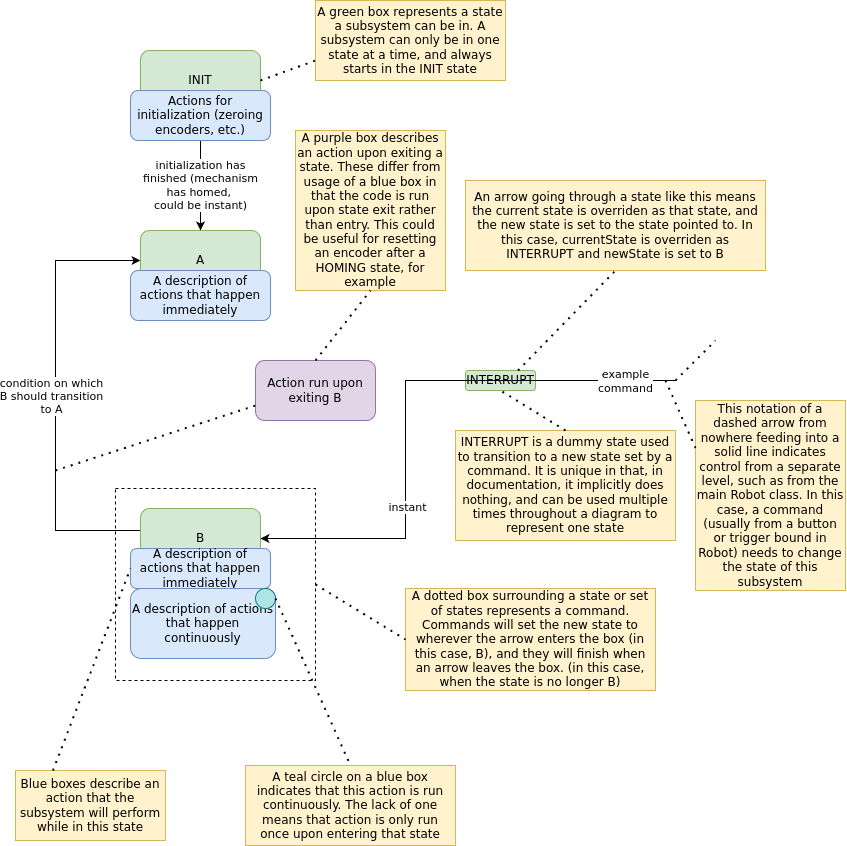

State Machines
State Machines have a state, and can transition between states based on conditions or commands.

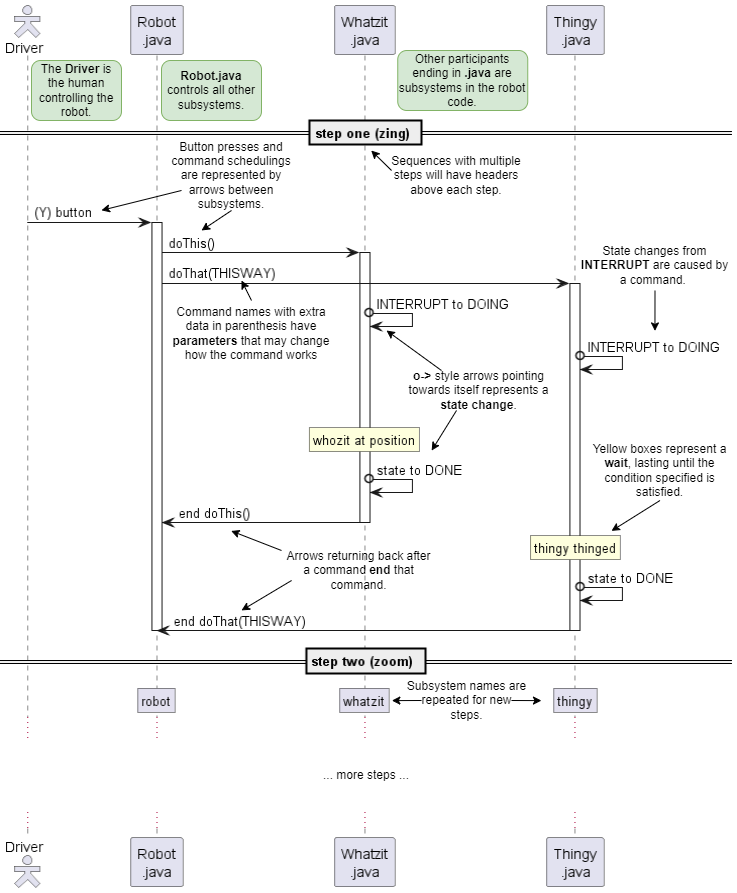

Sequences
Sequence Diagrams describe how different parts of the robot interact to perform a complicated action, and are implemented as command structures with the WPILib command based framework
Subsystems

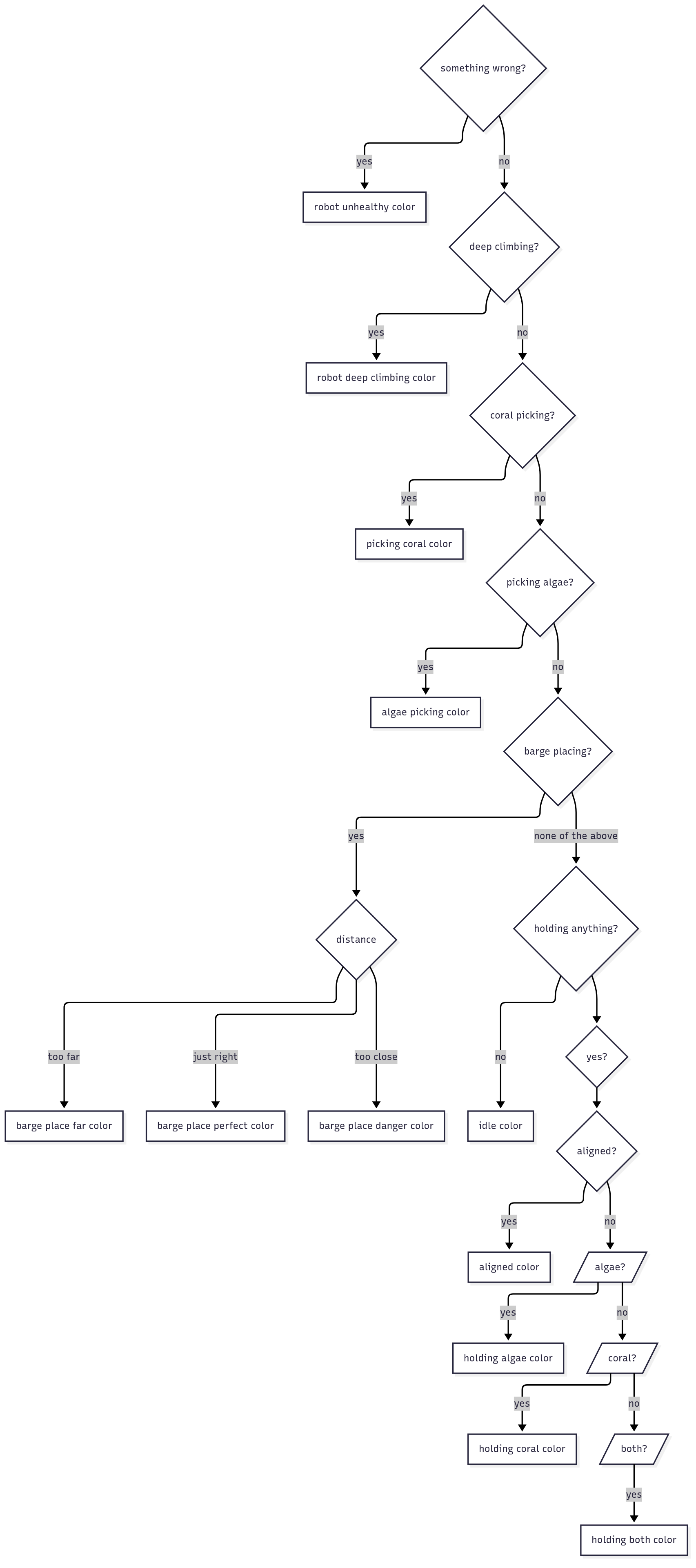

Blinkin
The Blinkin LEDs are mounted to the outside of the robot and show the drivers the status of the robot.

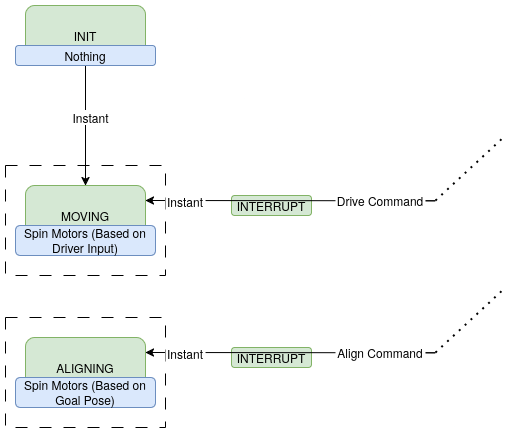

Swerve Drive
The Swerve Drive controls the swerve modules used to move the robot around.

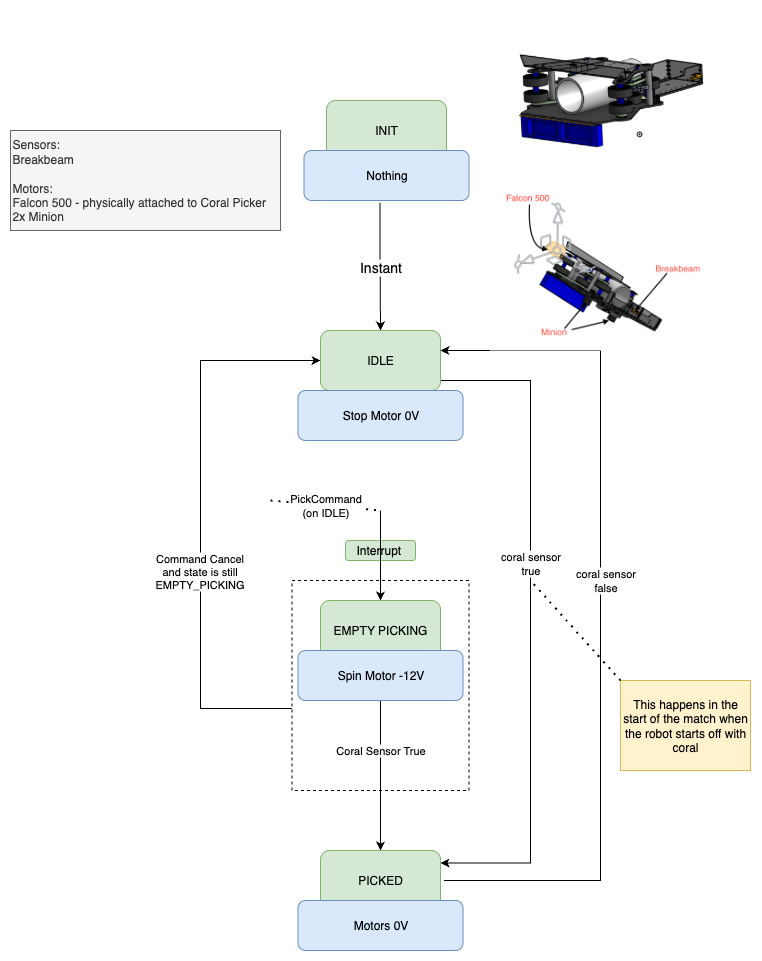

Chamber of Corals
The Chamber of Corals processes coral from the picker to the affector.
Overwatch
The Overwatch takes the place of both the Lift and the Pivot, and navigates between set positions using A*.

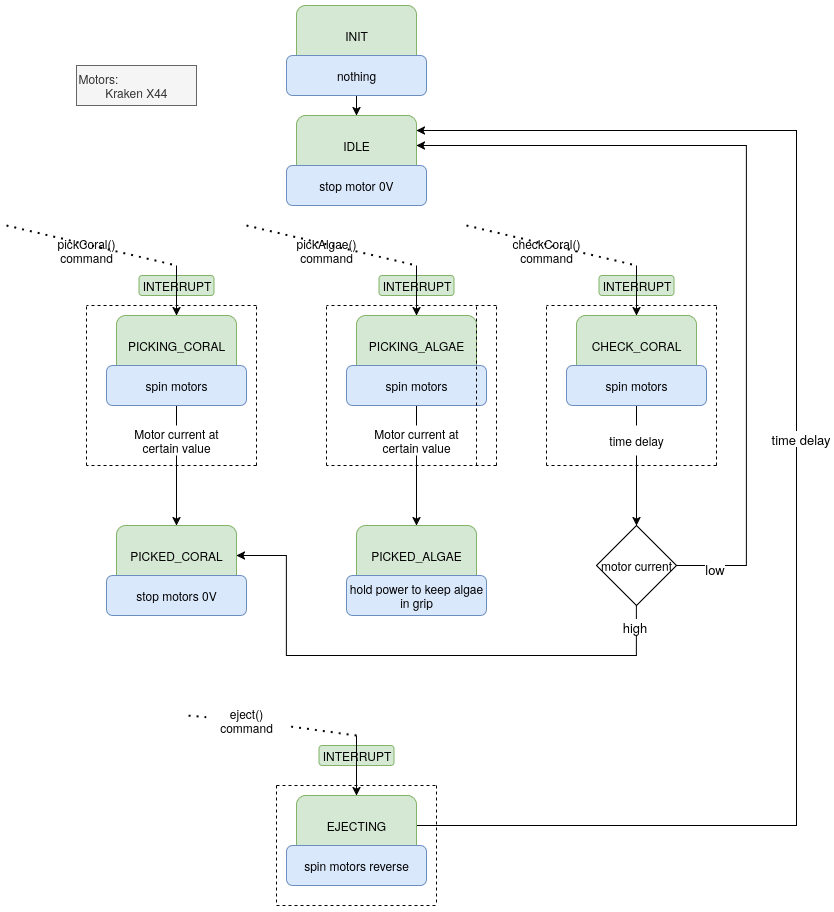

Affector
The Affector picks up the coral from the Chamber of Corals and then drops the coral on the reef. It also picks up algae.

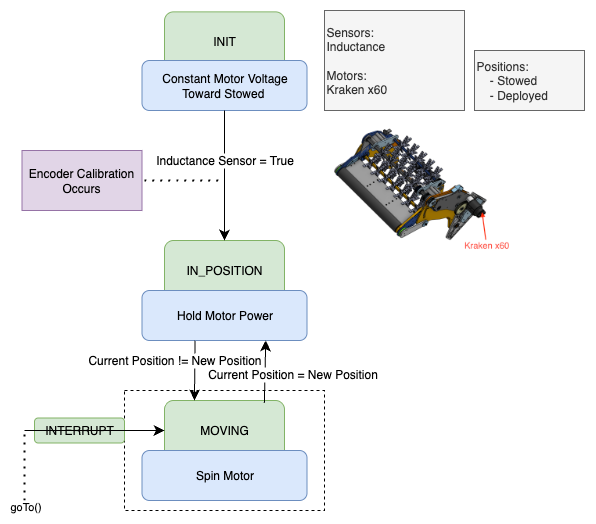

Coral Picker
The Coral Picker picks up coral and sends it to the Chamber of Corals.

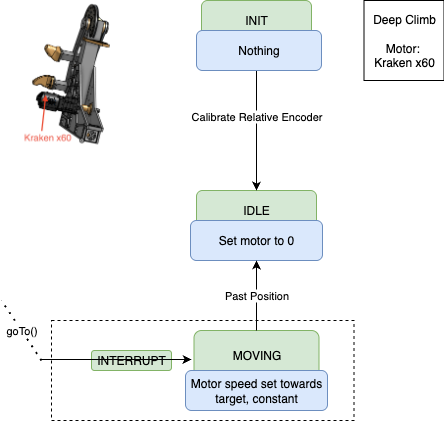

Climber
The Climber holds onto the cage and lifts the robot off the ground.
Algae Picker
The Algae Picker picks up algae and holds it in place for the affector
Sequences Diagrams/Command Structures

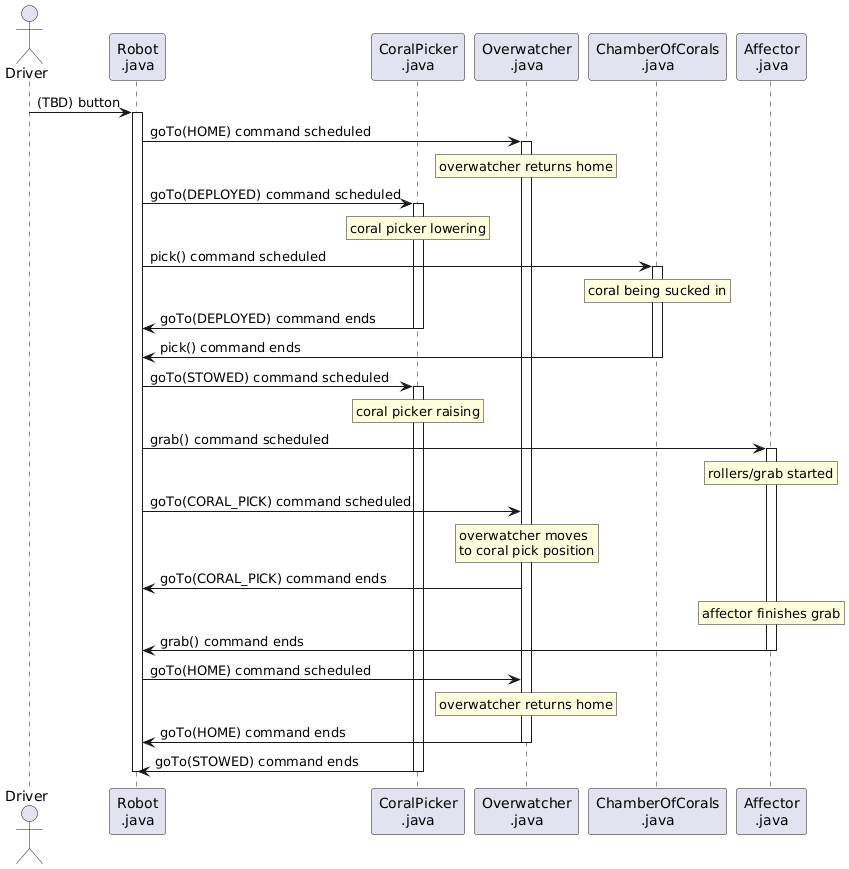

Coral Picked From Ground

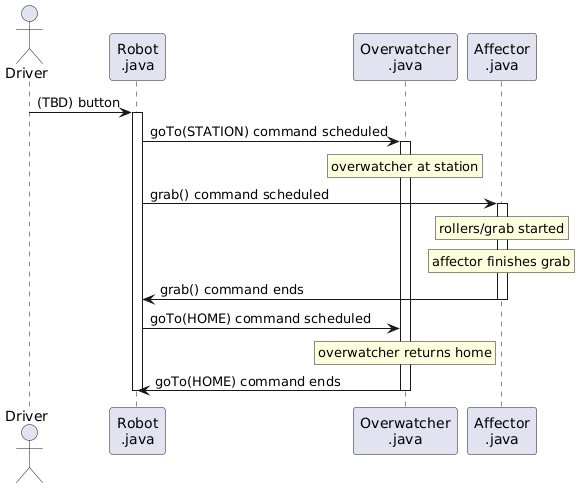

Coral Picked From Station
Coral Place
