Architecture Spec

Introduction

The architecture spec describes the overall intended design of the 2024 Offseason robot (TatorSwift). This includes designs for the various algorithms and how various components should interact. This document should be readable without having any understanding of code, and should not be dependent on any particular code implementation.

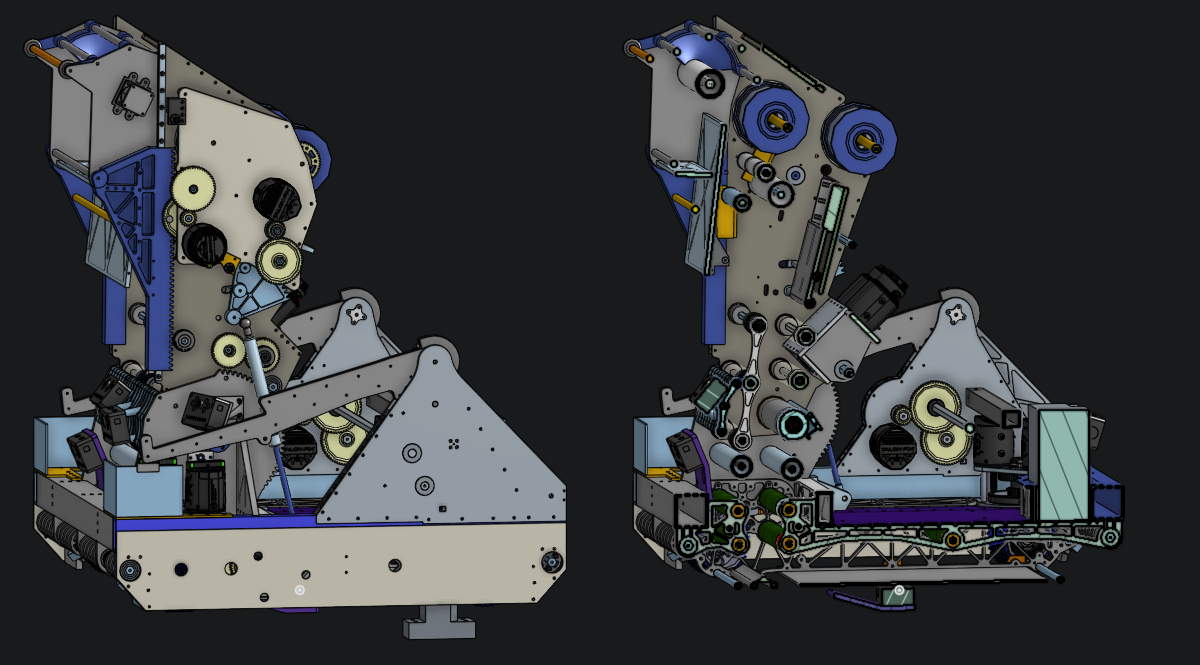

Full Bot

How to Read the Diagrams

The following diagrams can be understood through these example diagrams:

State Machines

State Machines have a state, and can transition between states based on conditions or commands.

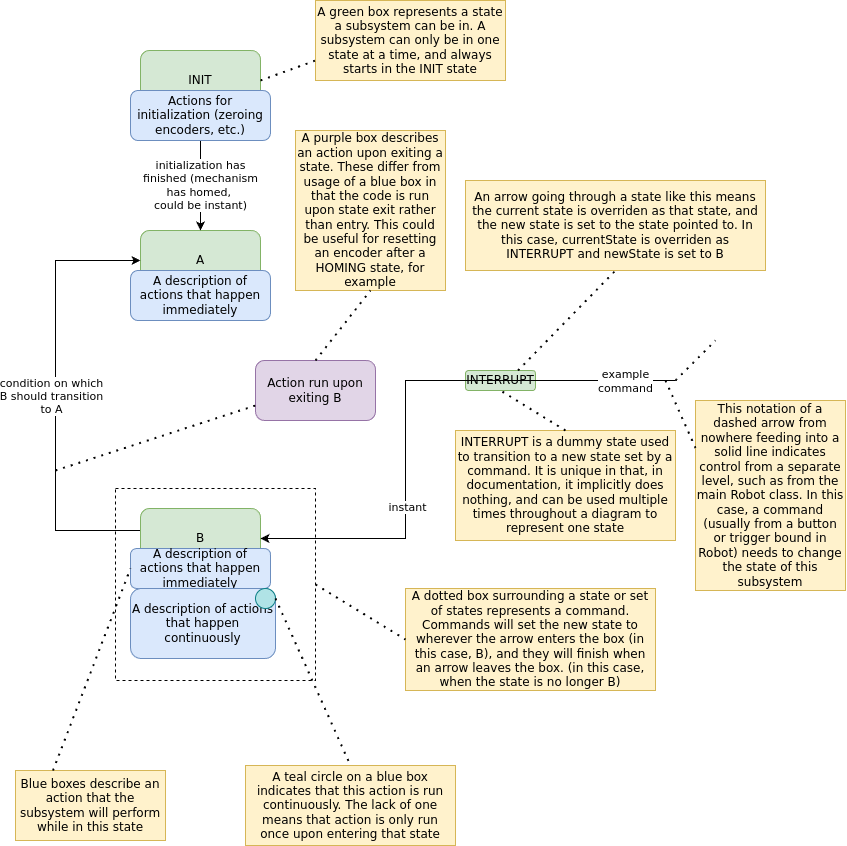

State Machine Legend

Sequences

Sequence Diagrams describe how different parts of the robot interact to preform a complicated action.

Sequence Legend

Gamepad

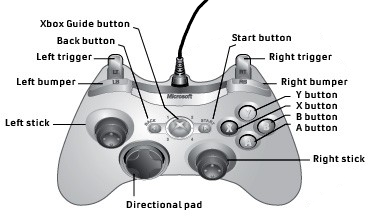

For reference, here are the names of the buttons on a gamepad:

Gamepad Legend

Design of Subsystems

Picker

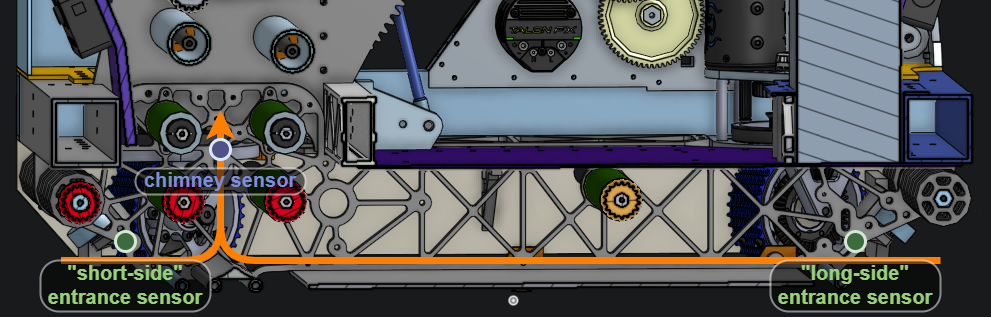

The Picker can obtain notes on the ground from either side and feed them into the King Rollers.

Picker CAD

State Machine

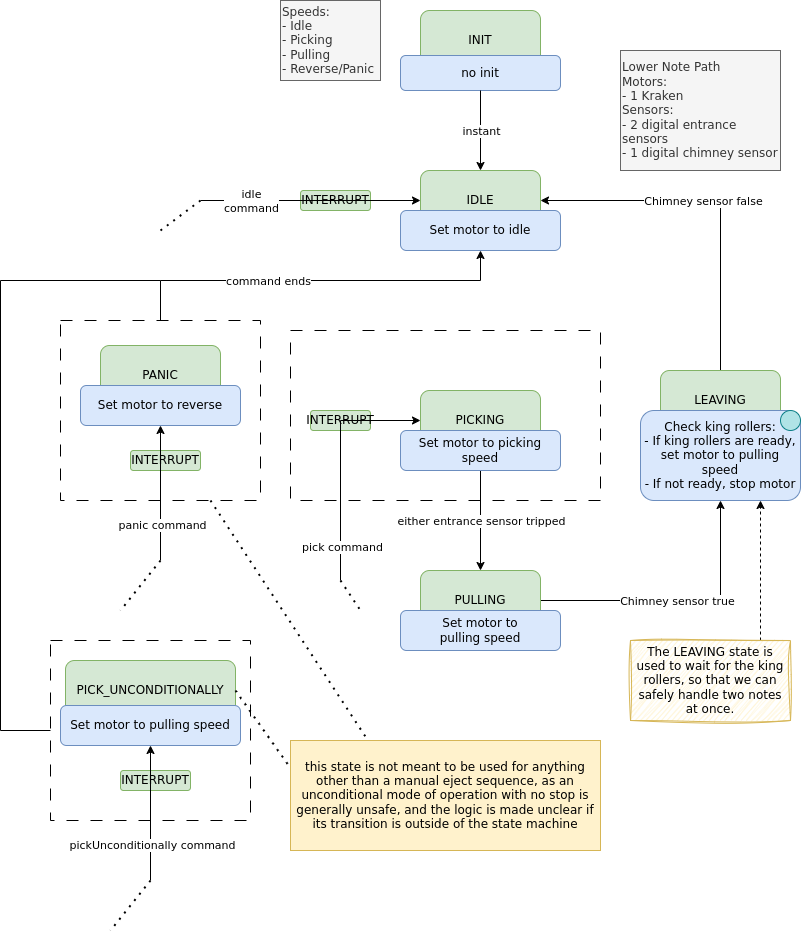

Picker State Machine

Sequence Diagram

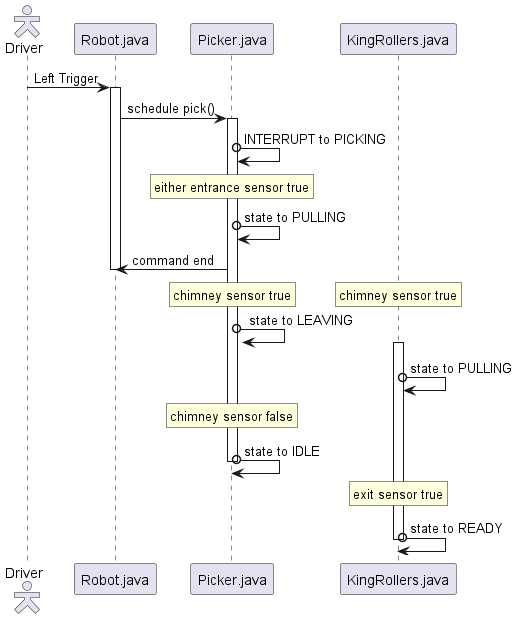

Pick Sequence Diagram

Directly Responsible Individuals:

  • Cedar (Programming)
  • Ian (Programming)
  • Zach (Mechanical)
  • Nate (Mechanical)
  • Vedika (Mechanical)

King Rollers

The King Rollers can hold a note from the Picker until it's ready to be fed into the Upper Note Path.

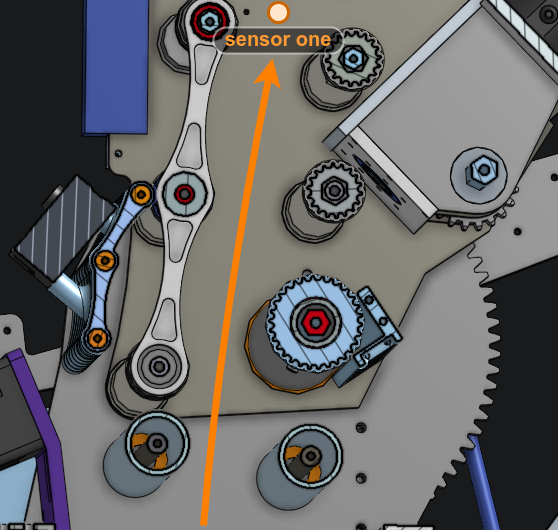

King Rollers CAD

State Machine

King Rollers State Machine

Directly Responsible Individuals:

  • Cedar (Programming)
  • Ian (Programming)
  • Tristan (Mechanical)

Upper Note Path

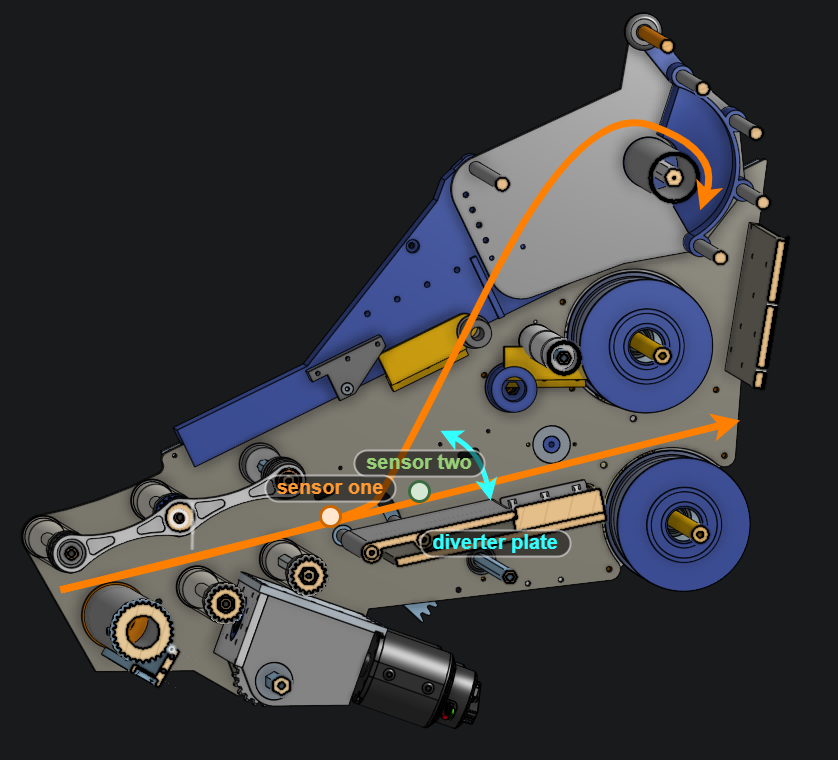

The Upper Note Path can take a note from the King Rollers, shoot it, or dunk it in the amp or trap.

Upper Note Path CAD

State Machine

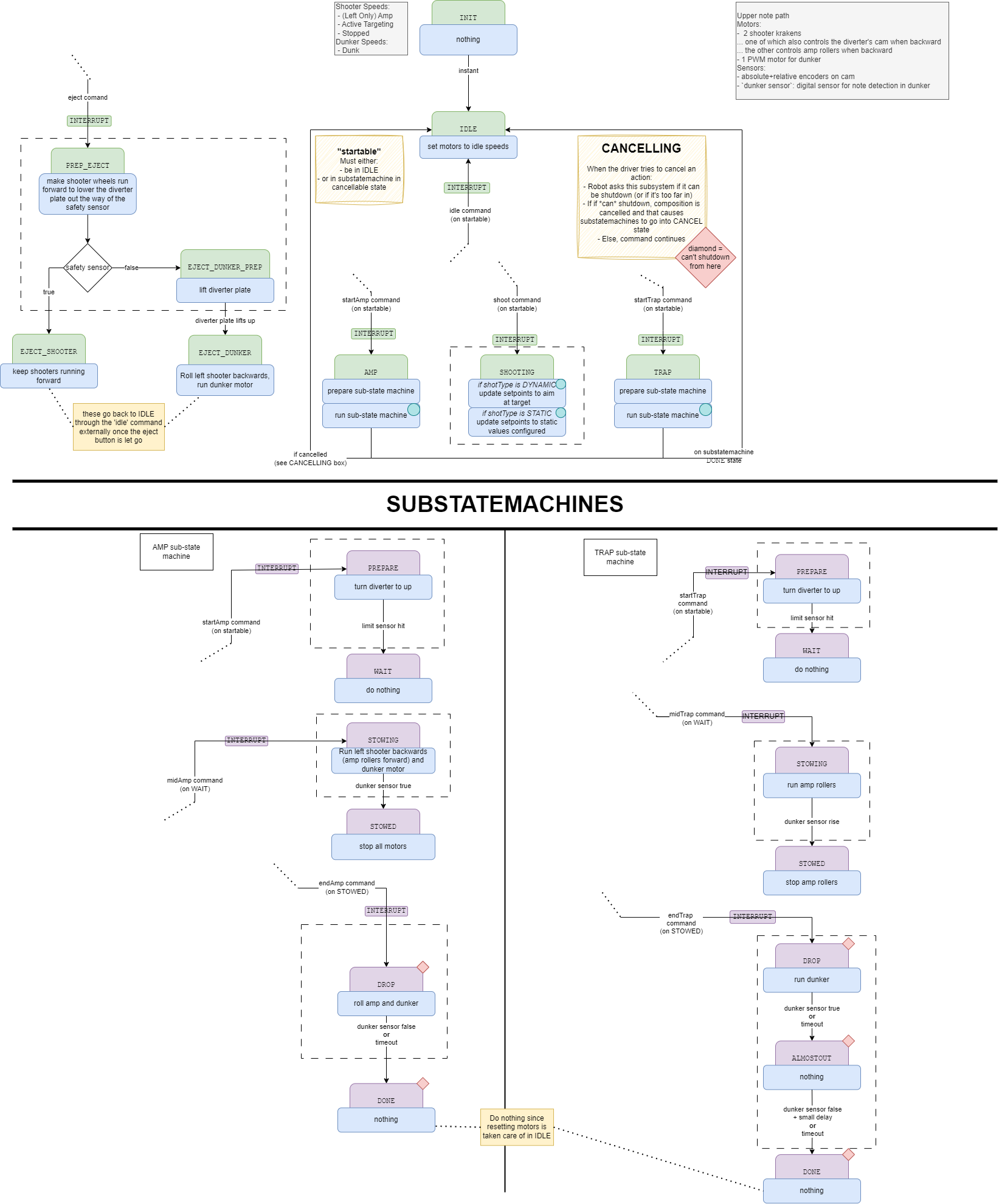

Note that this state machine has extra elements: - Sub-state machines are smaller state machines controlled by the main state machine's states. Only up to one sub-state machine can be active at once. - The red diamonds are for indicating that a substate cannot be interrupted.

Upper Note Path State Machine

Sequence Diagrams

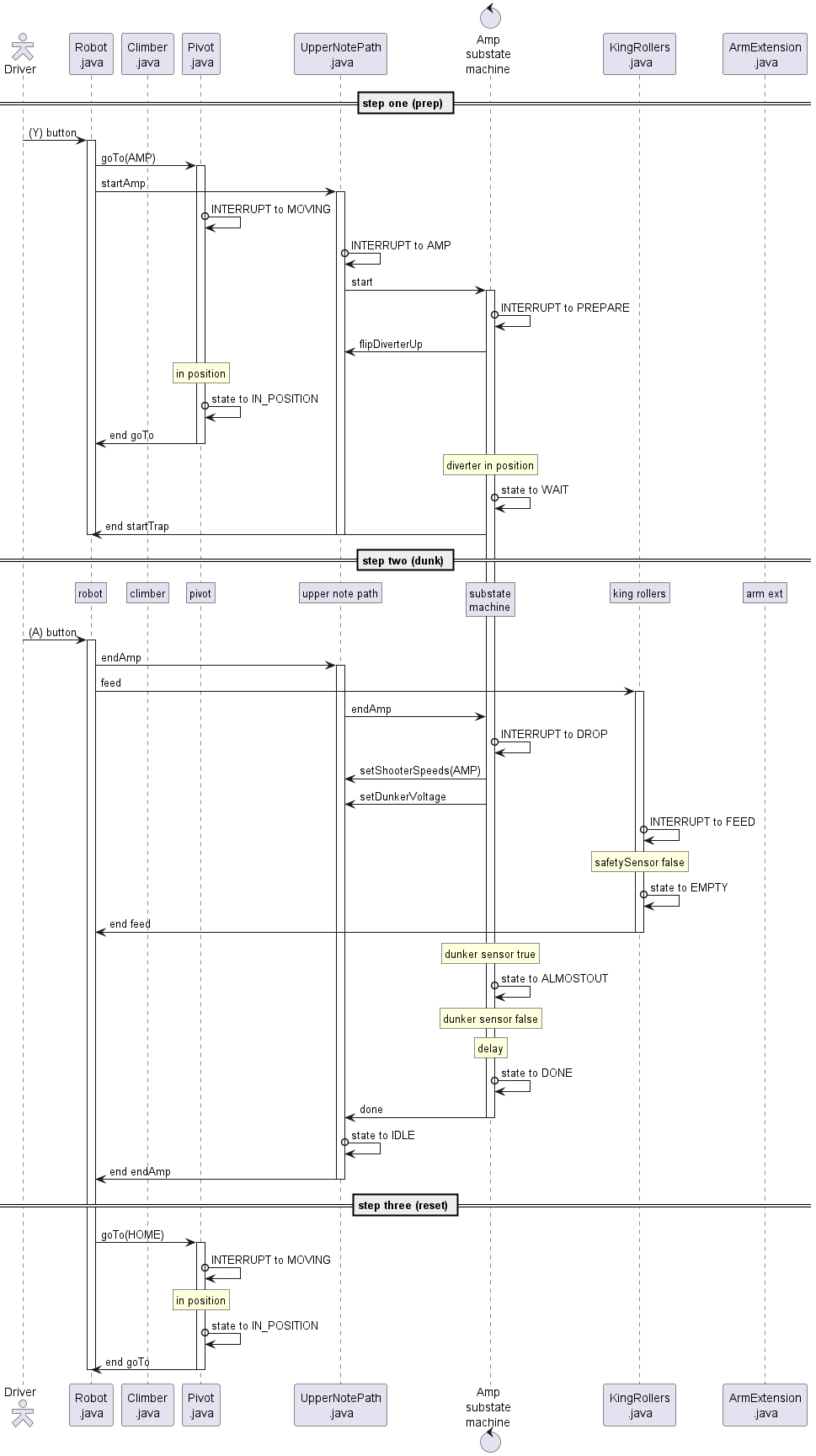

  • Amp Amp Sequence Diagram

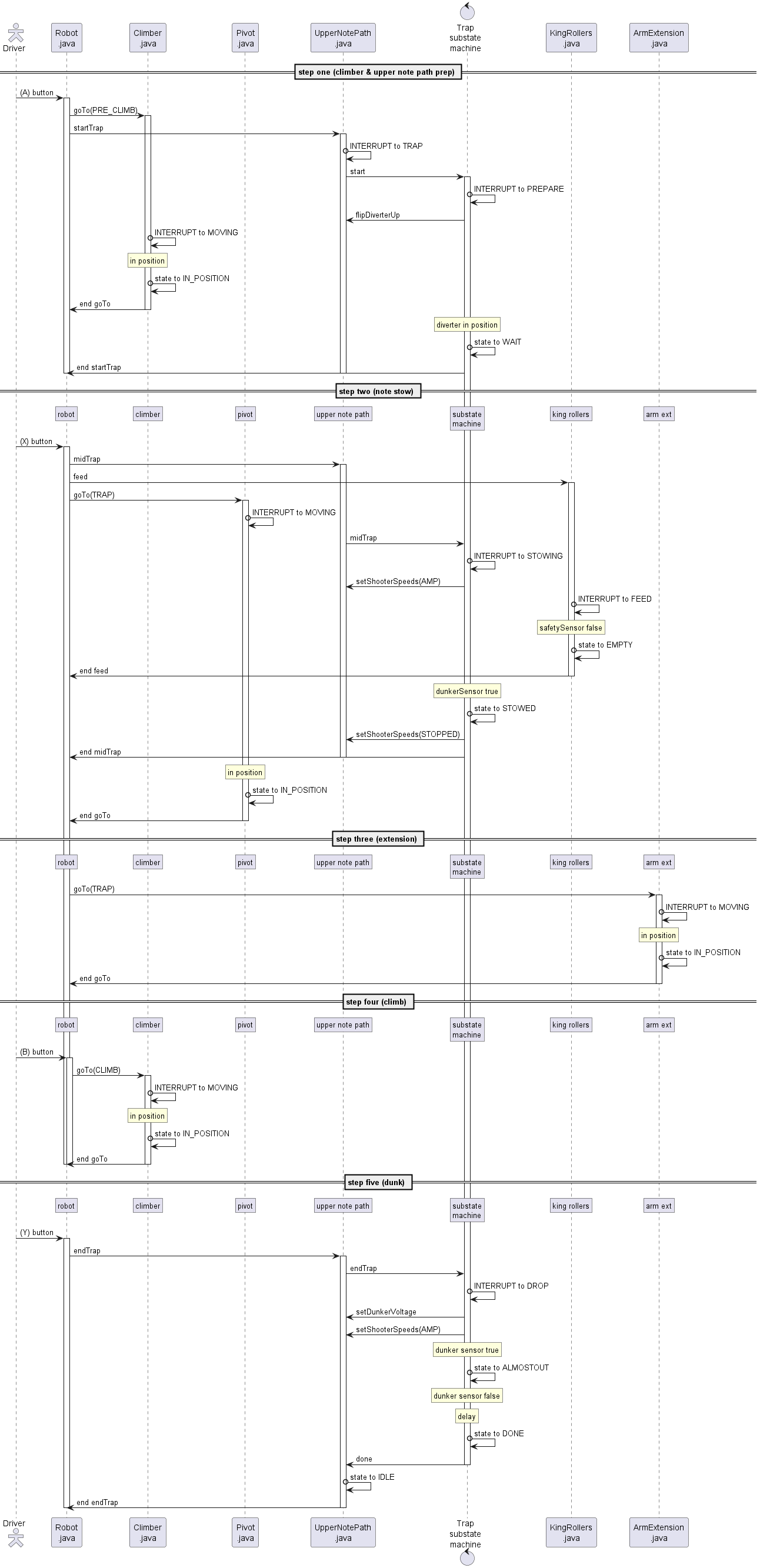

  • Trap Trap Sequence Diagram

Directly Responsible Individuals:

  • Cedar (Programming)
  • Ian (Programming)
  • Tristan (Mechanical)

Pivot

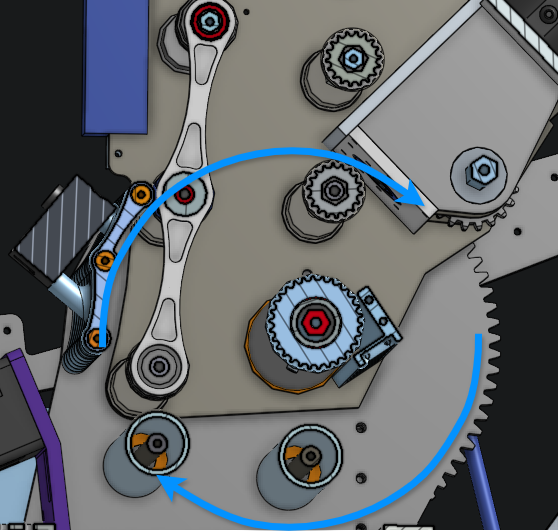

The Pivot can angle the Upper Note Path for shooting/amping/trapping.

Pivot CAD

State Machine

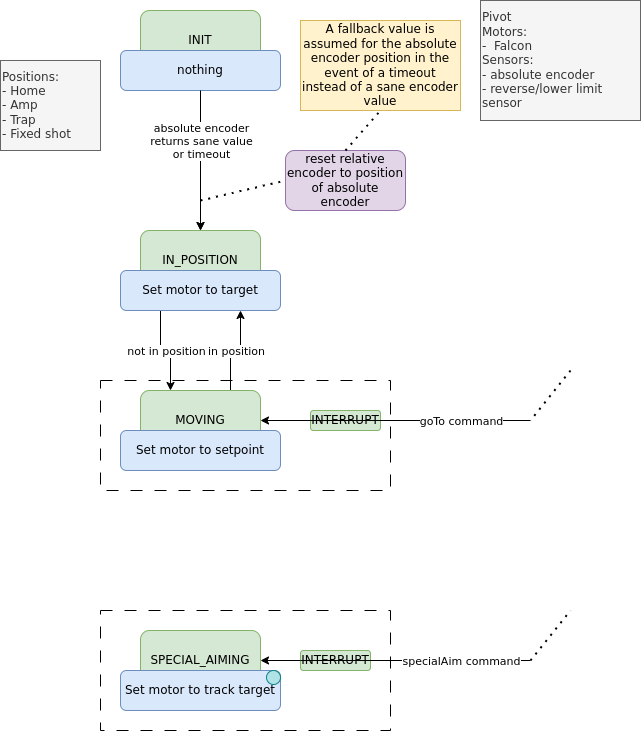

Pivot State Machine

Directly Responsible Individuals:

  • Cedar (Programming)
  • Ian (Programming)
  • Bentley (Mechanical)
  • Tristan (Mechanical)

Extension

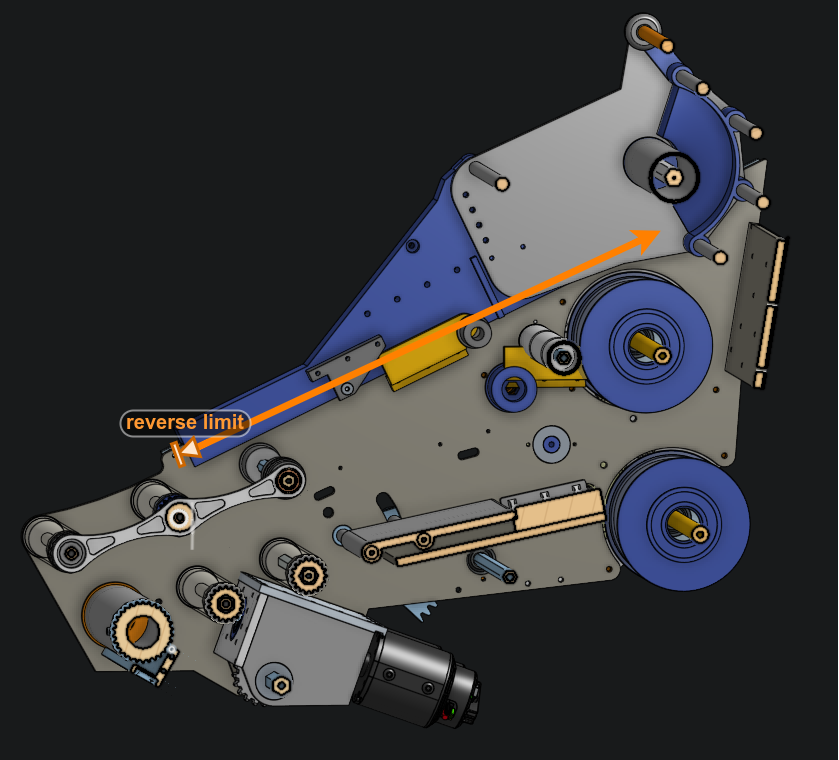

The Extension is mounted to the Upper Note Path and is used to carry a note out to the trap.

Extension CAD

State Machine

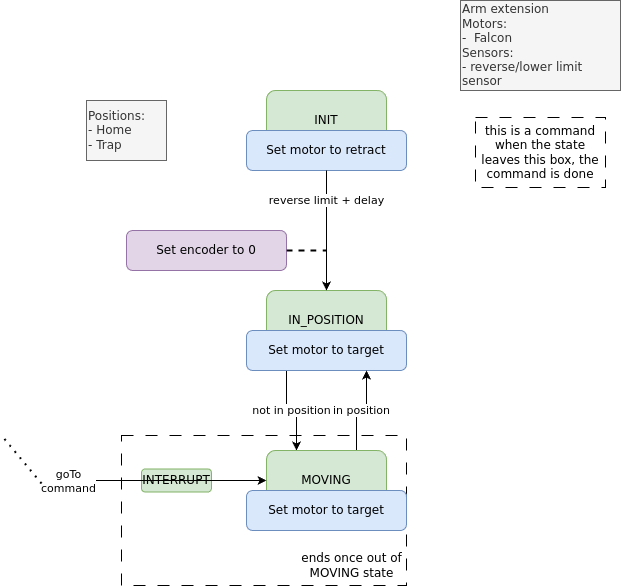

Extension State Machine

Directly Responsible Individuals:

  • Cedar (Programming)
  • Ian (Programming)
  • Nate (Mechanical)

Climber

The Climber can pull the robot up the chain on the Stage.

Climber CAD

State Machine

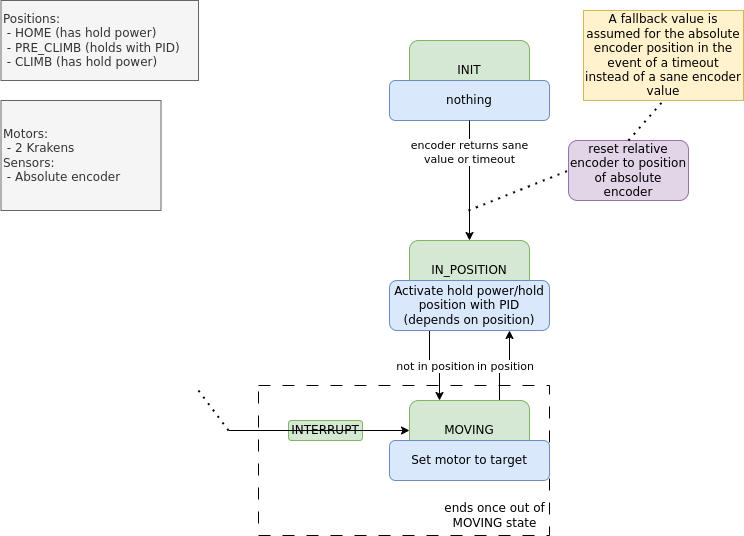

Climber State Machine

Directly Responsible Individuals:

  • Cedar (Programming)
  • Ian (Programming)
  • Esther (Mechanical)
  • Omar (Mechanical)

Drivetrain

The Drivetrain controls the swerve drive.

State Machine

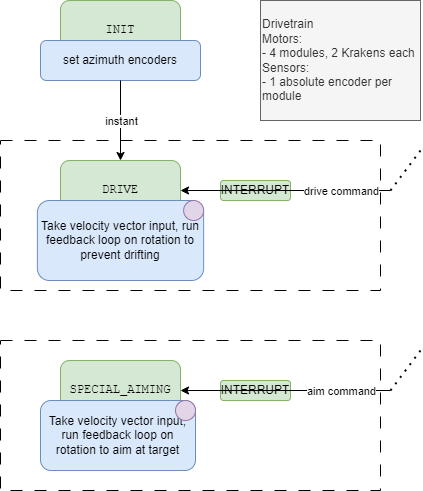

Drive State Machine

Directly Responsible Individuals:

  • Cedar (Programming)
  • Ian (Programming)
  • Ossian (Mechanical)

Blinkin (LEDs)

The Blinkin LEDs are mounted to the outside of the robot and show the driver what the robot is doing at a glance.

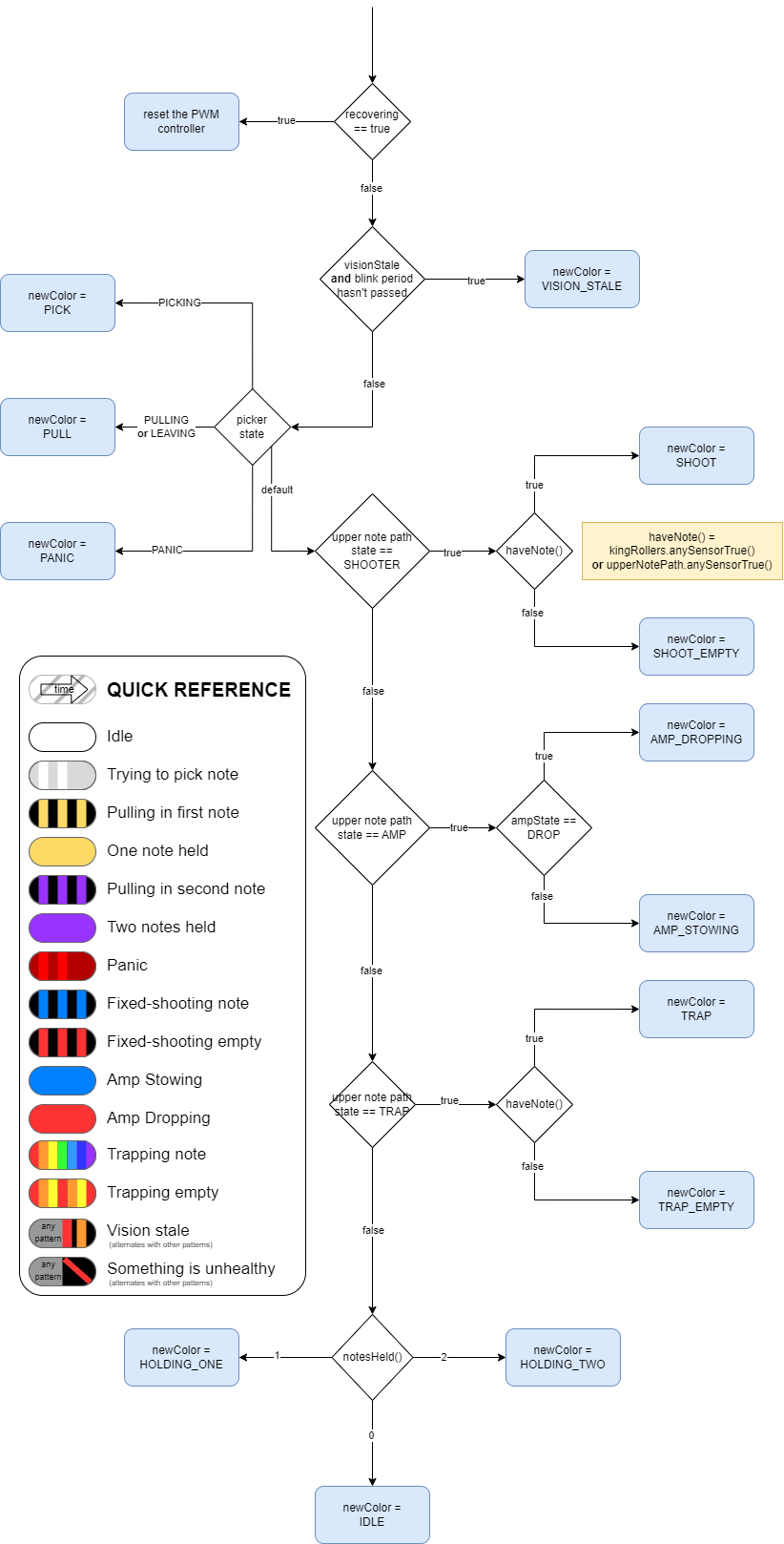

Flowchart

Blinkin

Network Tables

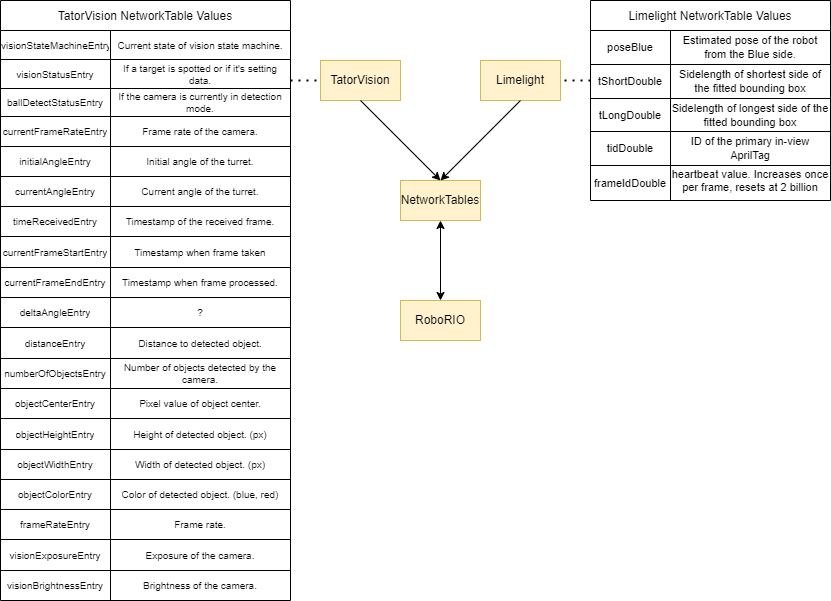

The Network Tables are a system to communicate between the robot code and other devices, e.g. cameras and the Driver Station.^[more on Network Tables at the WPILib docs] Network Tables
