2023 Offseason - Imitator

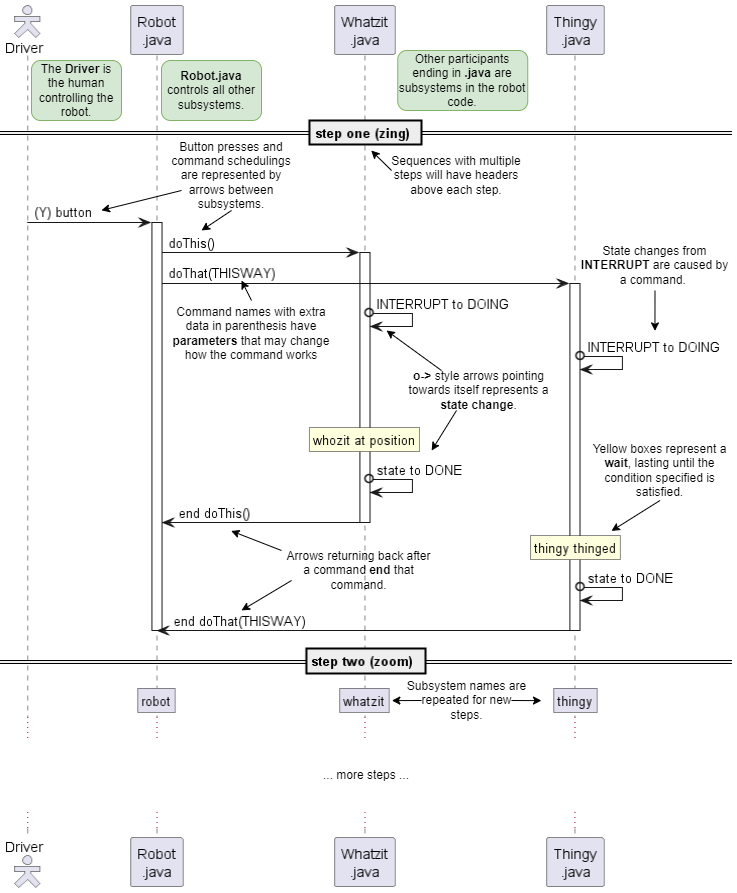

The 2023 offseason robot does not have proper documentation, and there only exists a select few sequence diagrams detailing how each action should be performed. An example sequence diagram can is shown below.

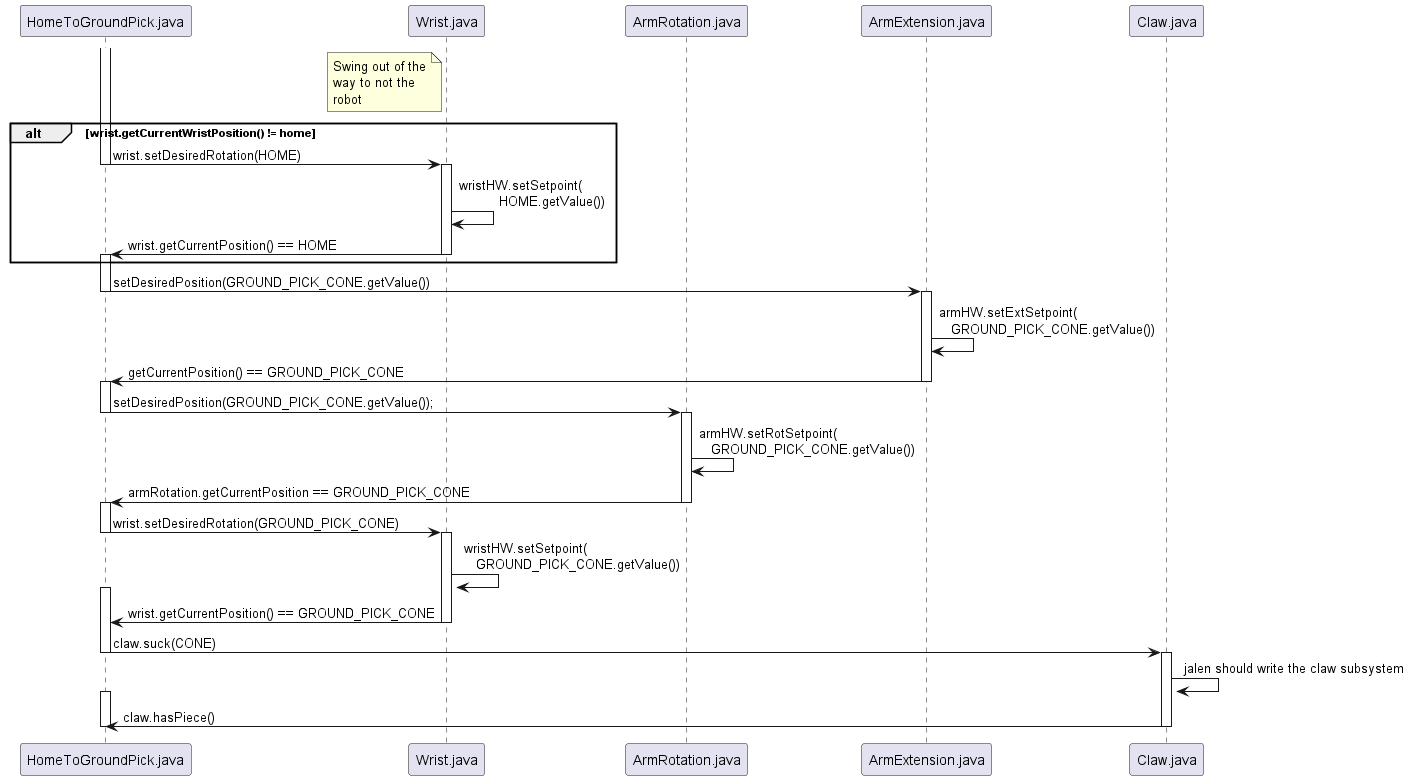

Home to Ground Pick Cone

Home to Ground Pick Cube

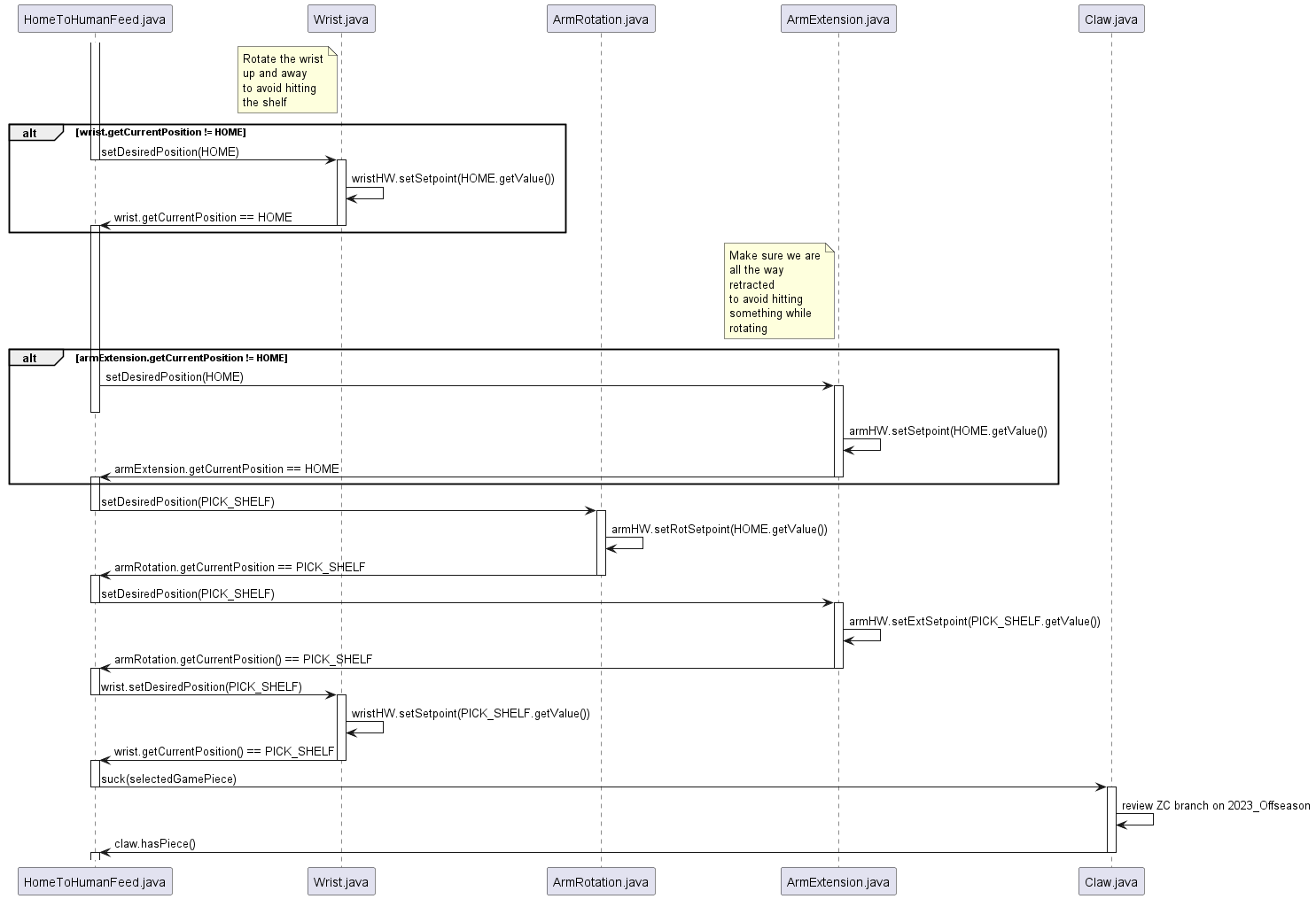

Home to Human Feed

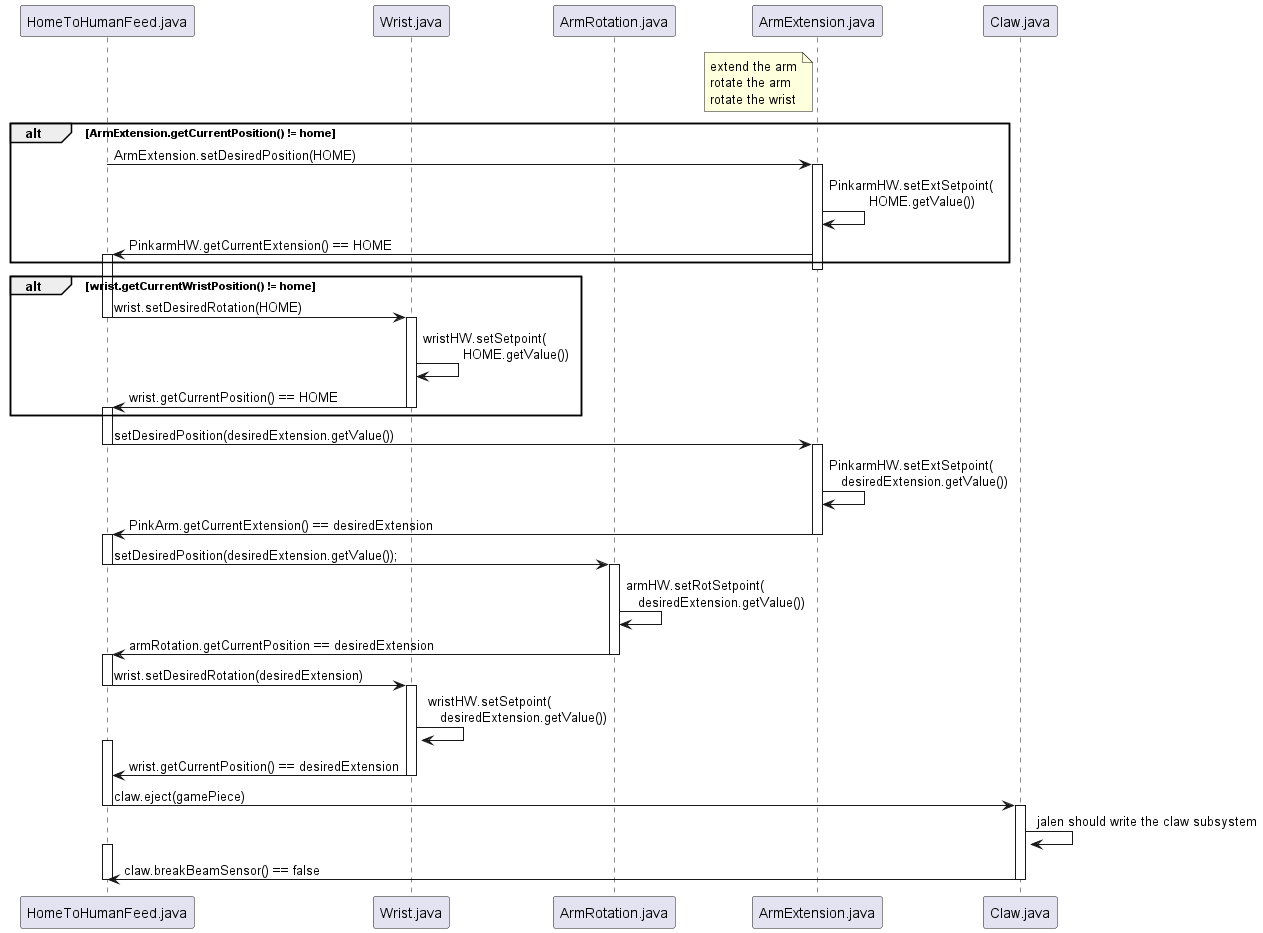

Home to Place

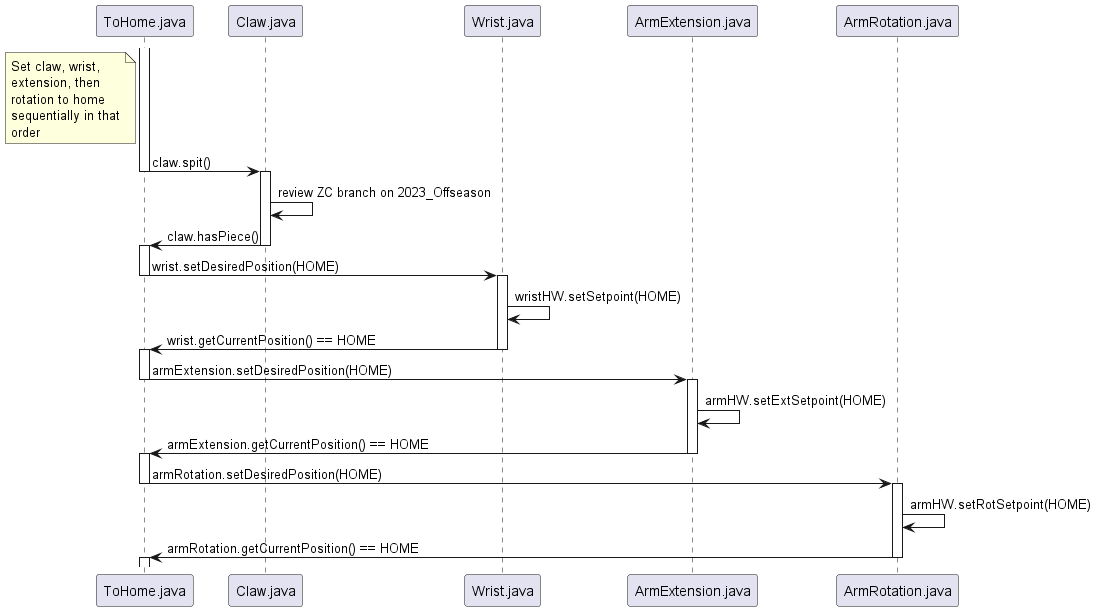

To Home
